Mini 3 in 1 Muiltiple Gateway (ZigBee +SigMesh/BLE)

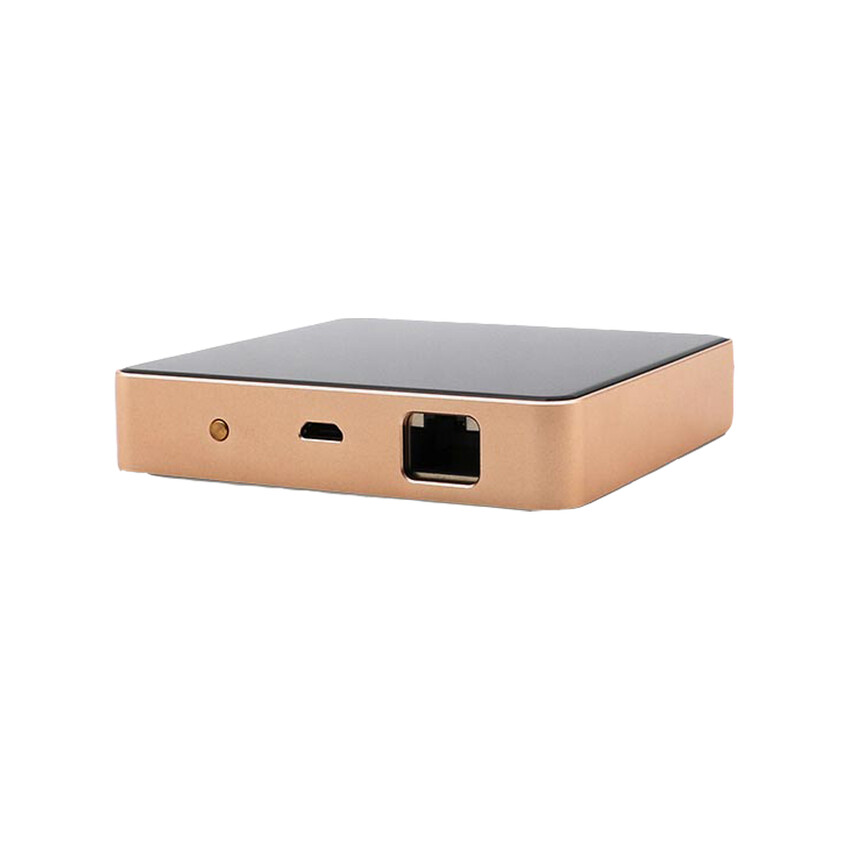

ZigBee Gateway(Ethernet)

1.Max.can be enclusion ZigBee sub-devices up to 128pcs ZigBee Devices

2.WAN 10/100M Etherenet Port( RJ45)

3.Power by Adapter: 110V～240V AC，5V/1A DC

4.Indicator LED: one power LED, one network LED.

5.Button: one reset button

6.Wireless Type:ZigBee 3.0,Frequency: 2.4～2.485GHz  IEEE 802.15.4

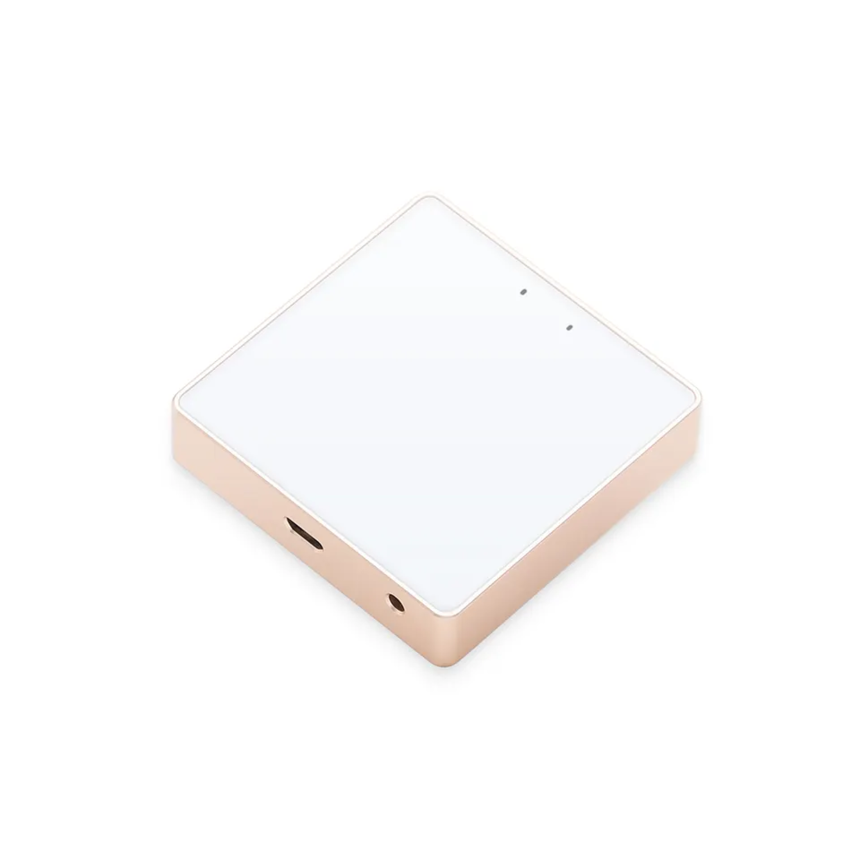

Mini  3 in 1 Muiltiple Gateway (ZigBee +SigMesh/BLE)

1.Power input: USB 5V/1A

2.Wireless connection: 2.4GHz WIFI

3.Communication protocol:

  WiFi standard: IEEE 802.11b/g/n (Channel 1-14)

  Bluetooth standard: Bluetooth 5.0

  Zigbee standard: Zigbee 3.0

4.Transmission distance: zigbee 10～30m, Bluetooth 10～20m

5.Material: PC+ABS

6.Product size: φ92*39mm
