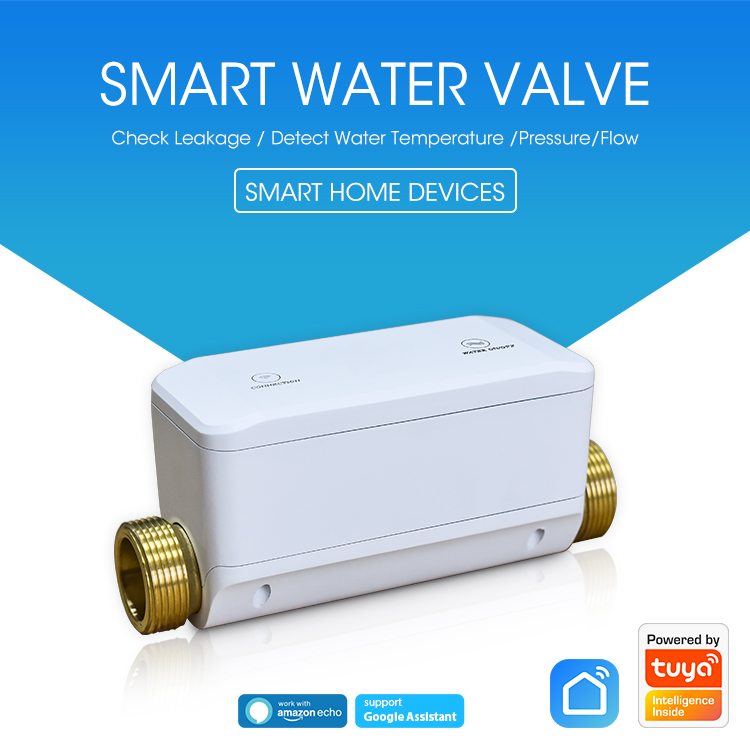

Multi-function Water Meter Valve

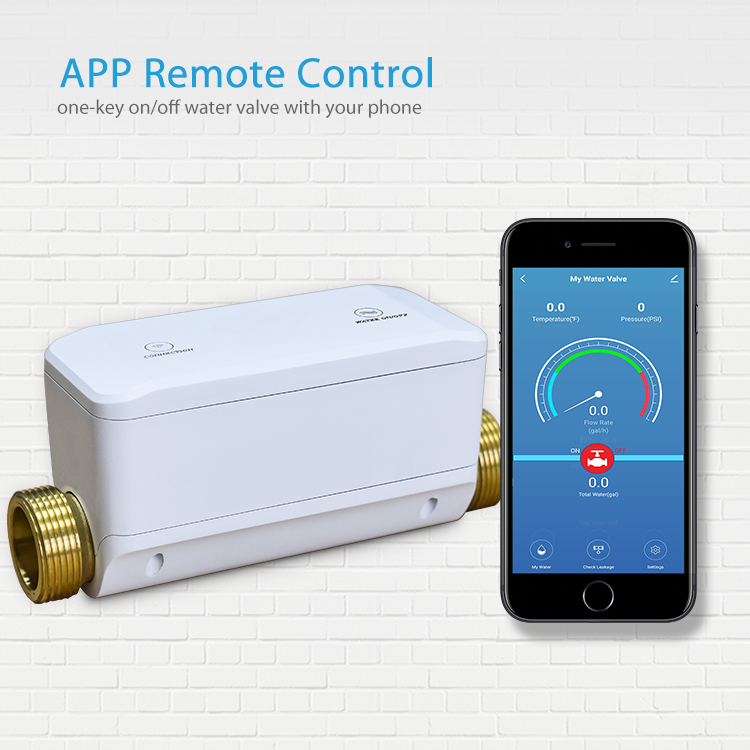

Tuya App Smart Multi-function Water Meter Valve

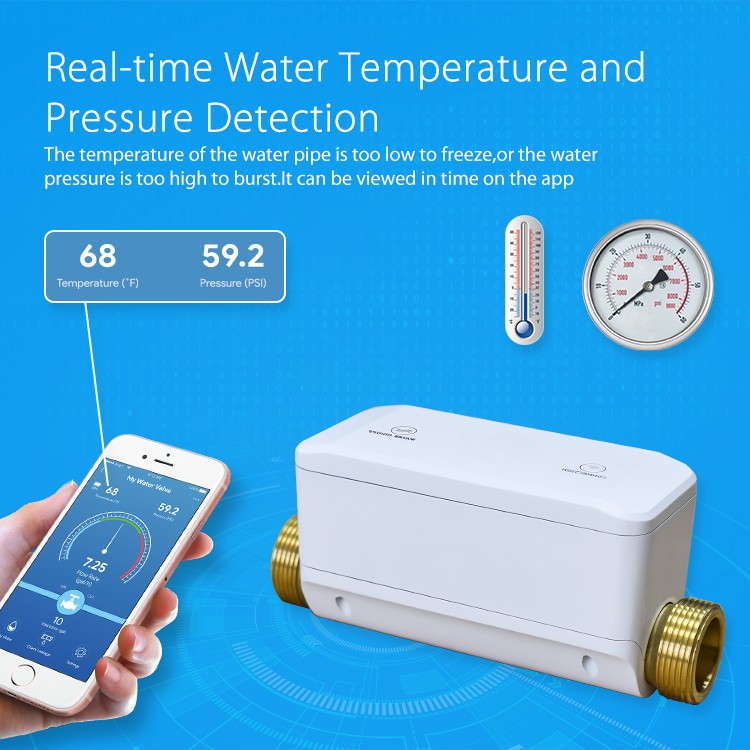

On / Off function;Water pressure/Flow/Temperature/leakage

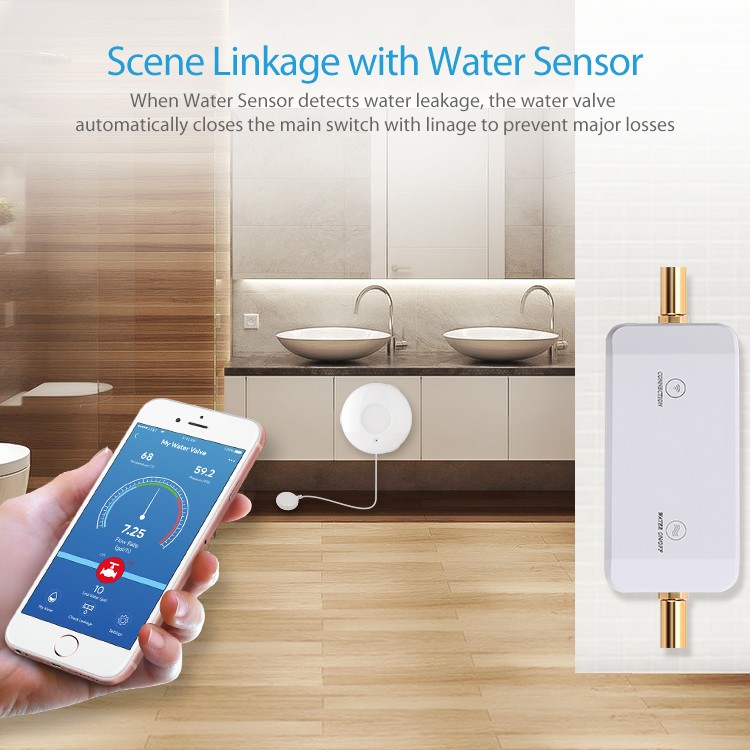

1.One click test for water leakage

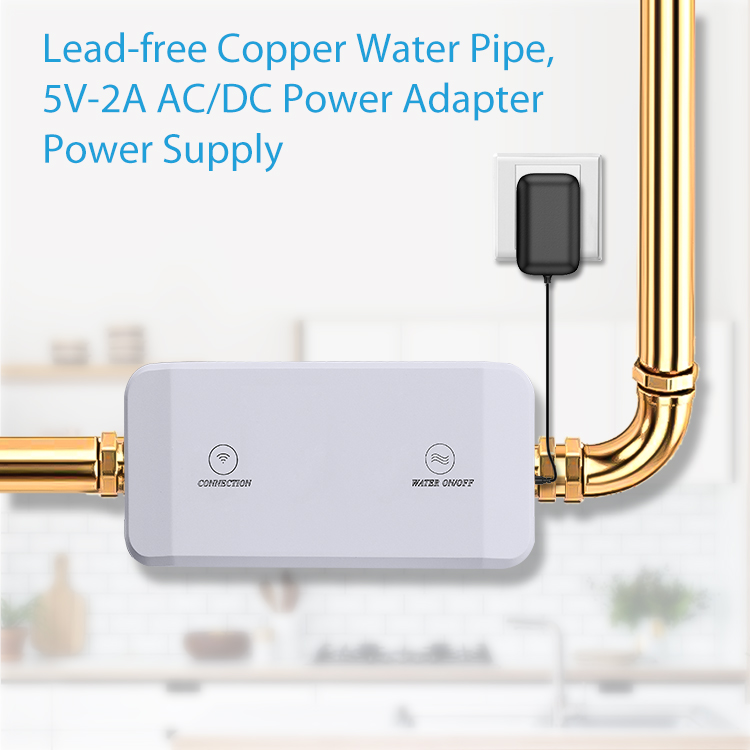

2.Adapter: Input: 100-240V~ 50/60Hz, 0.3A max; Output: 5V 1.0A

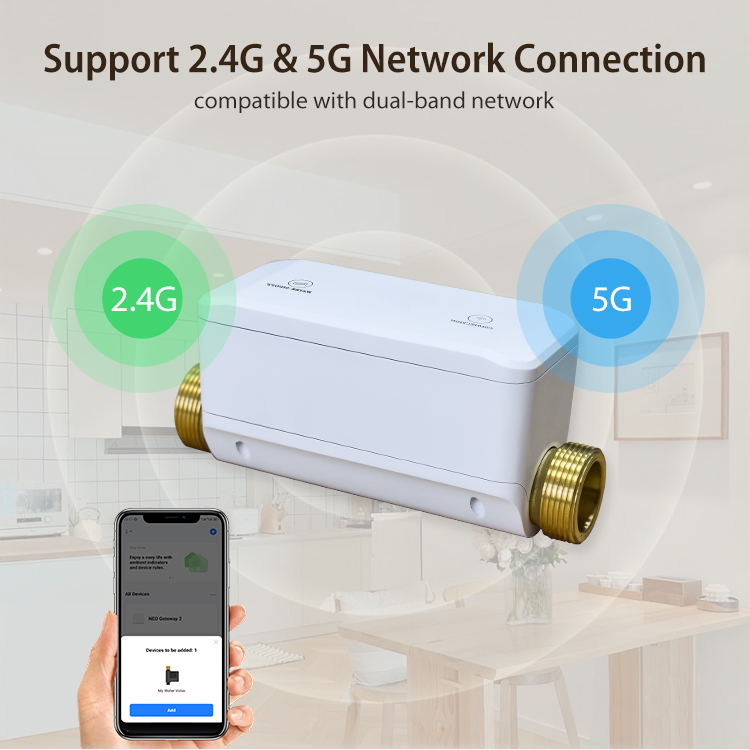

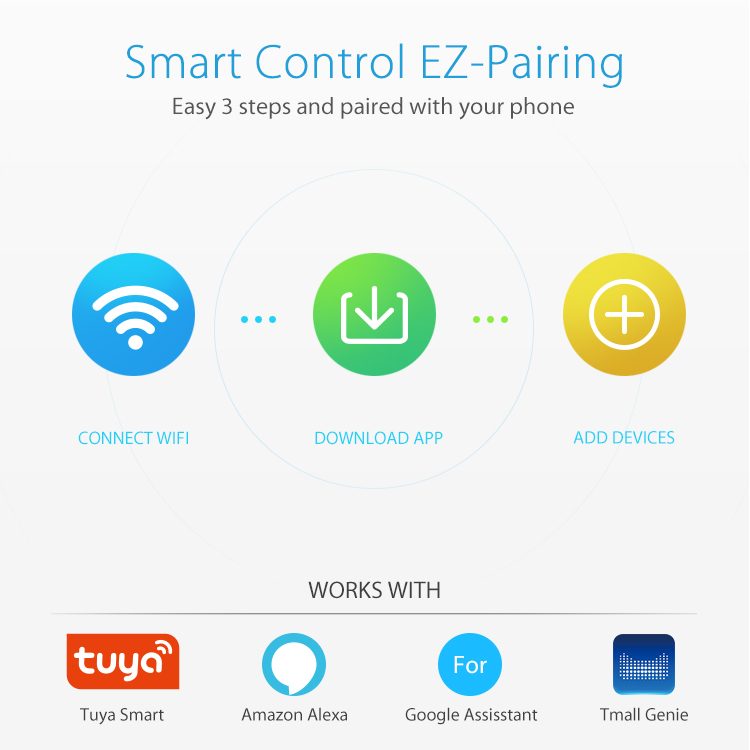

3.Wireless standard: IEEE 802.11b/g/n @ 2.4GHz

4.Main water supply line: DN20 or DN25 ( confirm before order)

5.Thread pitch/pattern: 1"-11.5NPS; 3/4"-14NPS

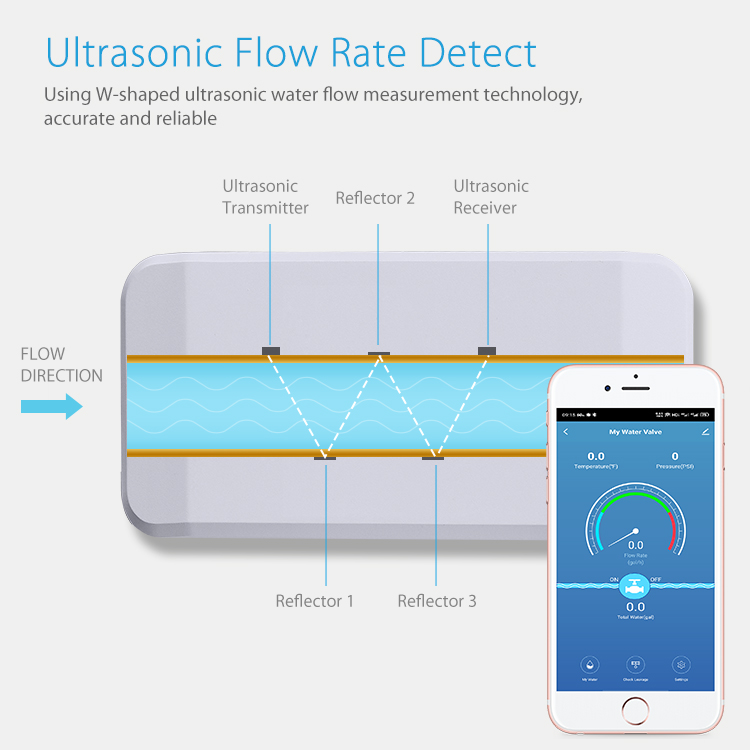

6.Water Flow Rate: 1"---0.11~34.3gal/min; 3/4"--0.07~22gal/min

7.On/Off time: 8 seconds

8.Water pressure: 20-100 psi Accuracy：±2.5%

9.Water Temperature: -10℃～65℃（14F～149F）

10.Relative humidity: 10-80%

11.Product life: >90，000 operating hours（10 years）

12.Product Size: 195mm*70mm*90mm
